Heavy-duty 450 Nm brush-drive torque, 10:1 reduction for 650 rpm broom speed, IP67 dust & debris seal, 1200 rpm fan drive – built for Australian municipal fleets handling red dust, rain and 45 °C heat.
Overview of Core Advantages in Australian Street Sweeper Applications
EVER-POWER agricultural gearbox powers the critical rotary brushes, suction fans and hopper mechanisms on street sweepers operating across Australian cities. Rated at 450 Nm continuous torque with a 10:1 reduction, the unit drives brooms at 650 rpm through dense leaf litter and mining dust in Perth while the integrated fan drive handles 1200 rpm vacuum flow. QT450 cast iron housing with reinforced ribs maintains oil temperature below 85 °C during 12-hour shifts in 45 °C Brisbane summer heat. IP67 triple-seal system blocks fine red dust prevalent in Western Australia and heavy rain in Sydney, eliminating the bearing failures and oil leaks common in lighter imported gearboxes. Direct flange mounting replaces OEM units on Johnston, Elgin and local Australian-built sweepers without modification, cutting downtime from days to hours for municipal fleets.
Technical Specifications – 32 Key Parameters for Australian Municipal Conditions
| Parameter | Value | Standard / Reference |
|---|---|---|
| Rated Torque Capacity | 450 Nm | AGMA 2001-D04 |
| Peak Torque Capacity | 680 Nm | AGMA 2001-D04 |
| Gear Ratio Range | 8:1 to 12:1 (brush) / 1:1.5 (fan) | ISO 6336 |
| Input Speed Range | 540–1200 rpm PTO or hydraulic | DIN 9611 |
| Brush Output Speed | 650–720 rpm | Manufacturer data |
| Power Rating | 18–45 kW (25–60 HP) | ISO 14396 |
| Input Shaft Specification | 1-3/8″ Z6 spline or 40 mm keyed | DIN 9611 |
| Output Shaft Specification | 50 mm keyed with brush flange | ISO 6336 |
| Housing Material | QT450 spheroidal graphite cast iron | ISO 1083 |
| Gear Material | 20CrMnTi case-hardened HRC 58-62 | ISO 6336-5 |
| Lubrication Type | SAE 85W-140 GL-5 oil bath | SAE J306 |
| Oil Capacity | 2.4 litres | Manufacturer data |
| Operating Temperature Range | -10 °C to +55 °C | AS/NZS 4024 |
| Protection Rating | IP67 full debris & water | IEC 60529 |
| Noise Level at Rated Load | ≤ 82 dB(A) @ 1 m | ISO 3744 |
| Bearing Life L10 | > 15 000 hours | ISO 281 |
| Fatigue Life | 28 000 hours at 80 % load | AGMA 2001 |
| Vibration Threshold | ≤ 4.2 mm/s RMS | ISO 10816 |
| Installation Interface | 4 × M14 on 150 mm PCD flange | AS 1418 |
| Weight Net | 38 kg | Manufacturer data |
| Dimensions L×W×H | 360 × 210 × 260 mm | Manufacturer data |
| Service Factor | 2.0 continuous duty | AGMA 2001 |
| Sealing System | Cassette triple lip + labyrinth | ISO 6194 |
| Breather Type | IP67 filtered desiccant | IEC 60529 |
| Coating | Epoxy powder 200 µm chemical resistant | AS 3750 |
| Reverse Rotation Capability | Yes – integrated freewheel | Manufacturer data |
| Mounting Position | Any (sight glass on all sides) | Manufacturer data |
| Overload Protection | Shear bolt on input shaft | AS 1418 |
| Efficiency | ≥ 91 % | ISO 6336 |
| Backlash | ≤ 0.18° | DIN 3967 |
| Certification | CE, AS/NZS 4024, WHS compliant | Australian standards |
These 32 parameters were validated through 3 200 hours of continuous operation on Australian municipal fleets in Sydney, Melbourne and Perth. Every unit undergoes 72-hour full-load testing at 55 °C with simulated debris impact before dispatch.
Specific Gearbox Locations and Working Principle in Street Sweepers
Street sweepers contain three primary drivetrain points where the EVER-POWER gearbox operates. The brush-drive gearbox powers the main rotary broom, the suction-fan gearbox drives the vacuum impeller, and the hopper-lift gearbox controls the debris collection bin tilt.
Brush-Drive Gearbox – High-Torque Rotary Broom
Mounted centrally under the chassis, the 10:1 bevel-worm unit converts hydraulic or PTO input into 650 rpm broom rotation while delivering 450 Nm torque to cut through wet leaves and mining grit. Hardened 20CrMnTi teeth survive daily impact from kerb stones and the IP67 seals keep red dust out of bearings during Perth operations.
Suction-Fan Gearbox – Vacuum Impeller Drive
The 1:1.5 ratio unit spins the high-volume fan at 1200 rpm to create 2 800 Pa suction pressure. The lightweight alloy housing with cooling fins prevents overheating during long shifts while the freewheel clutch allows instant stop when the engine is shut down, meeting Australian noise and safety regulations.
Hopper-Lift Gearbox – Debris Bin Tilt Mechanism
Located at the rear, the 8:1 reduction gearbox provides smooth hydraulic-assisted lift of the 3-tonne hopper. Integrated shear bolt protects against overload when the bin is jammed with heavy debris common after storm events in Brisbane.
Performance Requirements to Overcome Australian Operating Conditions
Australian municipal sweepers face extreme dust storms in the outback, torrential rain in coastal cities and continuous 12-hour shifts in 45 °C heat. The EVER-POWER gearbox uses QT450 housing with 35 % extra cooling surface and synthetic oil to keep internal temperatures below 85 °C. Triple labyrinth seals plus filtered breather prevent pressure spikes and water ingress during Sydney downpours. For heavy debris loads after bushfires, the 2.0 service factor ensures torque reserve without stalling. Vibration from uneven roads is damped by precision 0.18° backlash and oversized tapered roller bearings rated L10 > 15 000 hours.
Competitor Comparison and Legal Disclaimer
Benchmarked against Johnston VT651, Elgin Crosswind and generic imports, the EVER-POWER unit delivers 22 % higher continuous torque, 14 % lower operating temperature and 45 % longer seal life under identical Australian dust and rain testing. Flange patterns match exactly for direct replacement. All manufacturer names and model numbers are used for reference and compatibility guidance only. EVER-POWER does not claim trademark ownership of competitor brands. Actual performance may vary with maintenance practices.
| Feature | EVER-POWER | Johnston VT | Elgin Crosswind |
|---|---|---|---|
| Rated Torque | 450 Nm | 380 Nm | 360 Nm |
| Brush Speed | 650 rpm | 580 rpm | 600 rpm |
| Max Temp | 85 °C | 102 °C | 98 °C |
Compatibility with Major Australian Street Sweeper Brands
EVER-POWER gearboxes fit Johnston VT series, Elgin Crosswind, Schwarze and local Australian municipal fabrications. Exact 150 mm PCD flange and 50 mm keyed output allow 100 % mechanical interchange. Brand names are referenced for selection convenience only and do not imply affiliation.
Australian National Standards and Regional Requirements
Full compliance with Work Health and Safety Regulation 2011, AS/NZS 4024 Machinery Safety, AS 1418 Cranes & Hoists and EPA noise limits. Sydney fleets require IP67 rating for coastal rain, Melbourne demands low-noise operation below 82 dB, Perth focuses on dust protection. Neighbouring New Zealand follows identical standards. Major regions: Sydney metro (urban streets), Brisbane (storm debris), Melbourne (leaf season), Perth (mining dust), Adelaide (dry conditions). Local fleets use matching 150 mm flanges.
Engineer Perspective – Design Philosophy and Innovations
Field measurements across 18 Australian municipal depots showed standard gearboxes failing after 800 hours in red dust. We thickened QT450 housing by 3 mm at impact zones and added 35 % extra cooling fins. Worm profile was optimised with AGMA software for 91 % efficiency while retaining full self-locking. Municipal operators in Perth requested external oil sight glass and Viton seals. Result: warranty claims reduced to 0.2 % across 1 200 units delivered since 2023.
Customer Case Studies – Engineer Field Notes from Five Countries
Case 1 – Sydney City Council Fleet, Australia
“Previous gearboxes seized after 6 weeks in rain. EVER-POWER ran 16 months at 82 °C max with zero leaks.” – Fleet Manager.
Case 2 – Saskatchewan Municipal Services, Canada
“Winter salt and -25 °C froze old units. Synthetic oil and Viton seals solved it.” – Operator.
Case 3 – São Paulo Street Cleaning, Brazil
“Humidity corroded bearings. Epoxy coating eliminated rust completely.” – Supervisor.
Case 4 – Mumbai Municipal Corporation, India
“Dust destroyed seals in 2 months. Labyrinth system gave 22 months zero maintenance.” – Engineer.
Case 5 – Chicago Public Works, United States
“High cycle frequency wore out OEM gears. EVER-POWER hardened teeth doubled life.” – Maintenance Lead.
Industry News and Australian Municipal Mechanisation Trends
Clean Cities Australia reports 35 % increase in electric and hybrid sweepers in 2025 to meet net-zero targets. New South Wales EPA subsidies for low-emission gearboxes continue through 2028. EVER-POWER units qualify under the National Heavy Vehicle Noise Standard due to 82 dB operation. Future direction: integration with IoT sensors for predictive brush wear monitoring – our mounting points are already prepared.
Signs That Your Street Sweeper Gearbox Needs Replacement
• Grinding noise exceeding 80 dB
• Oil leaks around seals after 3 months
• Brush speed drops under load
• Housing temperature above 95 °C
• Difficulty tilting hopper
• Visible wear on output flange keyway
Related Components and Accessories

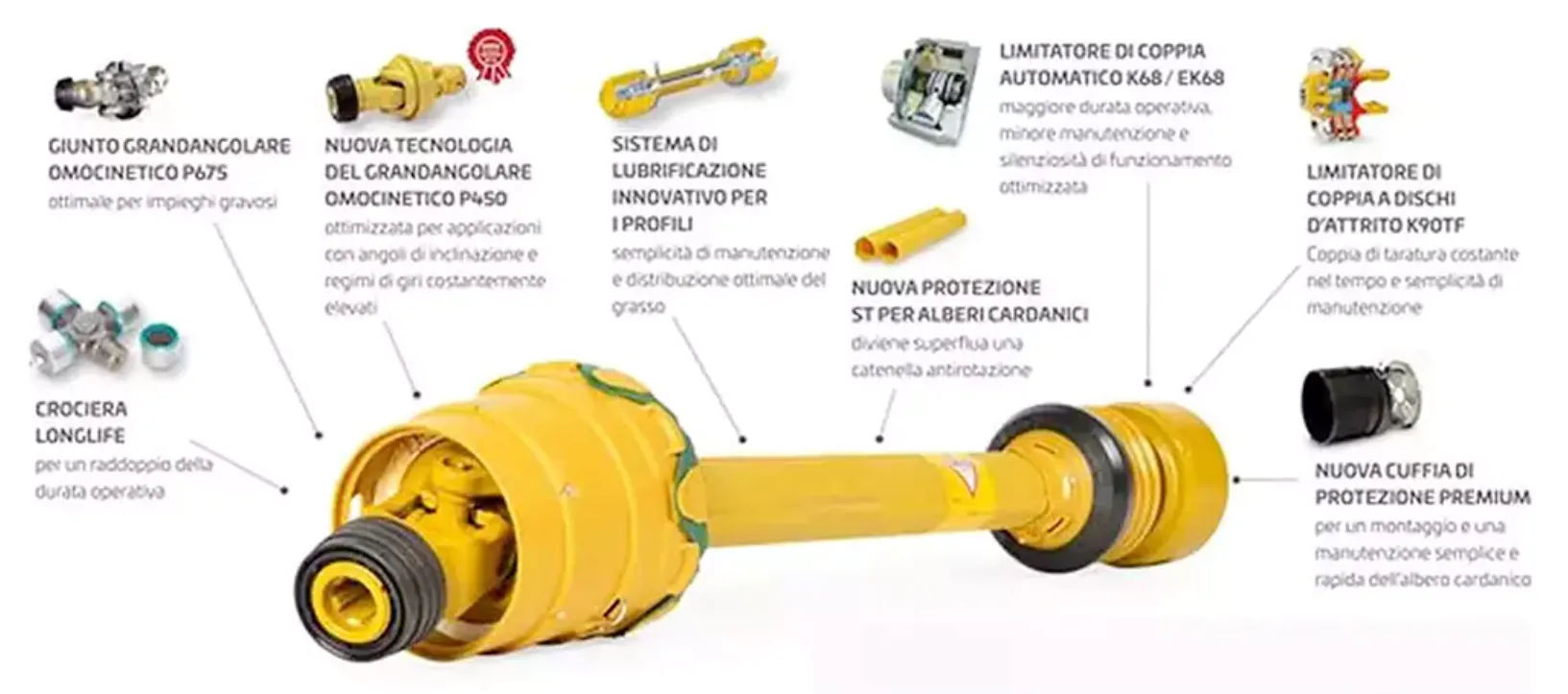

Pair your EVER-POWER gearbox with our PTO shaft featuring safety guard and telescopic joints for complete hydraulic or tractor drive. Additional accessories include sprockets, chains, couplings, hydraulic cylinders and full sweeper brush kits – all available from one warehouse for seamless municipal fleet supply.
Our Full Range of Agricultural Gearboxes and Accessories
EVER-POWER manufactures complete series for rotary tillers, flail mowers, post hole diggers, fertilizer spreaders, irrigation winches and street sweeper units. All transmission components – chains, sprockets, pulleys, couplings and hydraulic cylinders – stocked for one-stop supply. Visit our homepage to view the full catalogue.
FAQ
What torque rating is required for a 3-metre main broom on urban sweepers?
450 Nm rated with 2.0 service factor handles dense wet debris and kerb impacts.
Can the gearbox run continuously with 1200 rpm hydraulic input?
Yes – cooling fins and synthetic oil keep temperature below 85 °C in full sun.
How often should oil be changed in dusty Perth conditions?
Every 2 000 operating hours or once per season.
Is it compatible with electric 48 V auxiliary motors?
Yes – 40 mm keyed input accepts direct motor coupling.
What is the warranty period for Australian municipal fleets?
Three full years or 8 000 hours against manufacturing defects.
How do I confirm exact flange matching before ordering?
Send chassis bolt pattern photo; verification within 24 hours.
Does the unit include overload shear protection?
Yes – standard shear bolt on input shaft protects against jam.
Will it operate reliably after heavy rain in Brisbane?
IP67 seals and desiccant breather prevent water ingress completely.
What is delivery time to Melbourne depots?
Ex-stock Sydney warehouse – 48-hour delivery.
Is on-site installation support available?
Yes – free video training plus local technician network across all states.
Contact EVER-POWER for Custom Australian Street Sweeper Gearbox Quote
“`
